Anschlusseinszatz.a

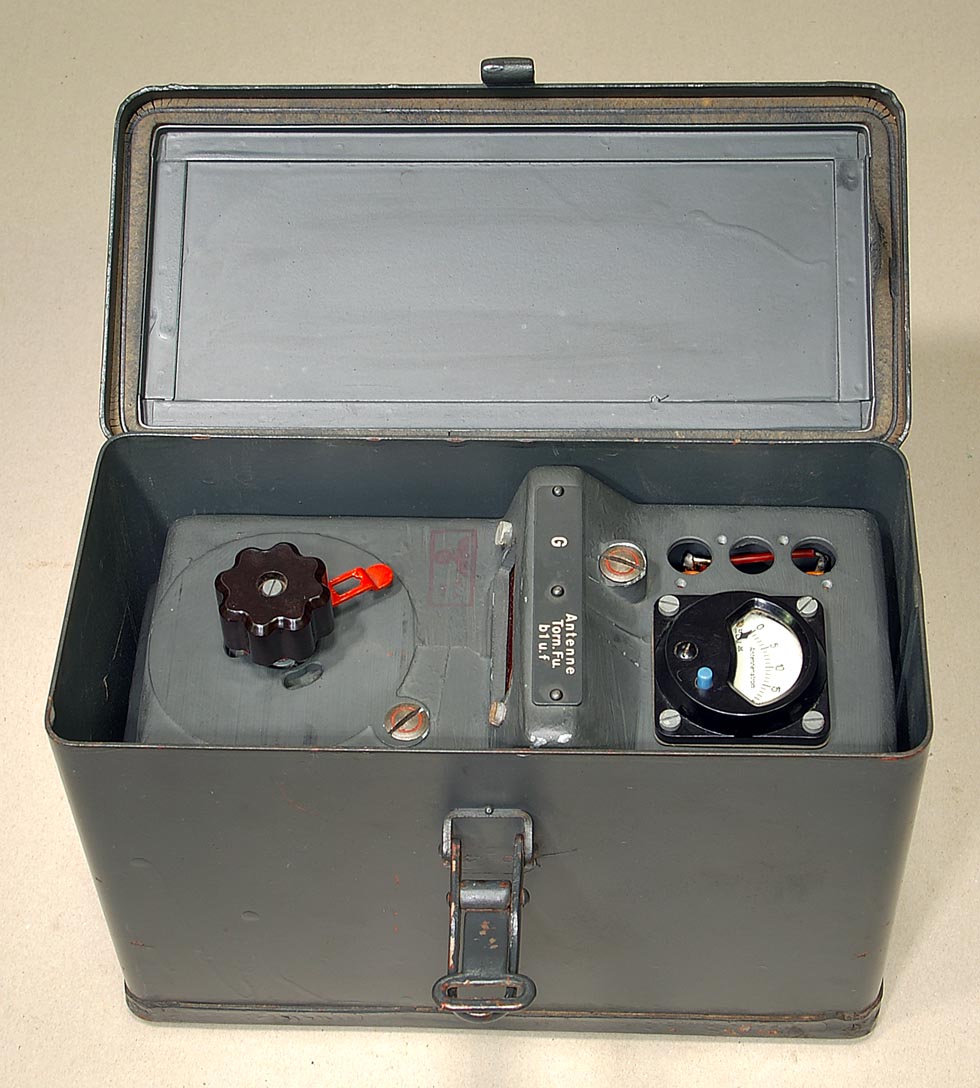

This is a very advanced antenna tuner for Torn.Fu.b1 for use in bunkers.





This is the most advanced mechanical antenna tuner I've ever seen.
The capacitors are connected to camshafts.
This allows all settings to be made with one button.
Impressive.

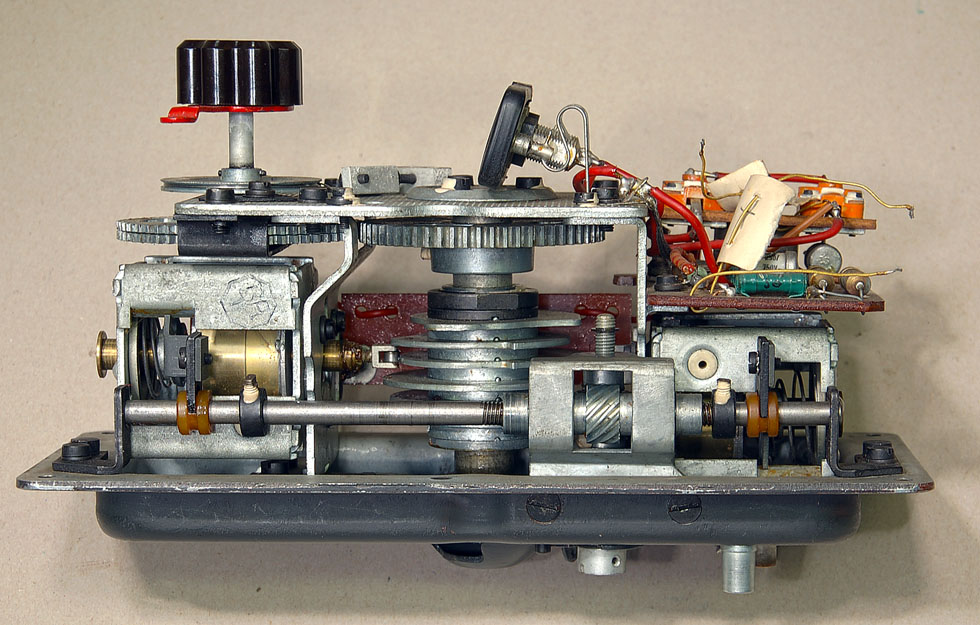

Two capacitors are controlled by the camshaft.
Several different camshafts can be selected.
This allows different antennas to be connected to the tuner.

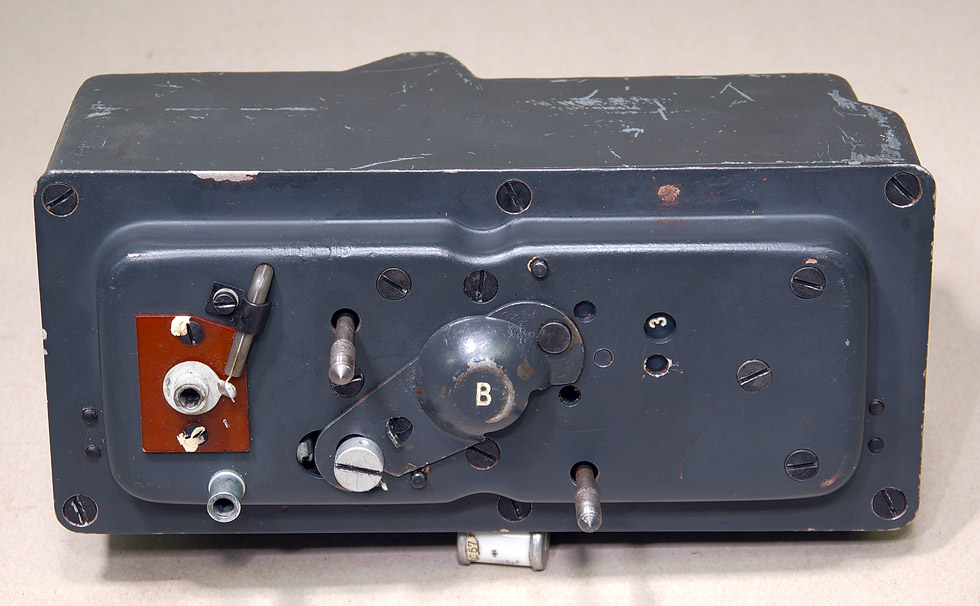

The tuner seen from the underside.

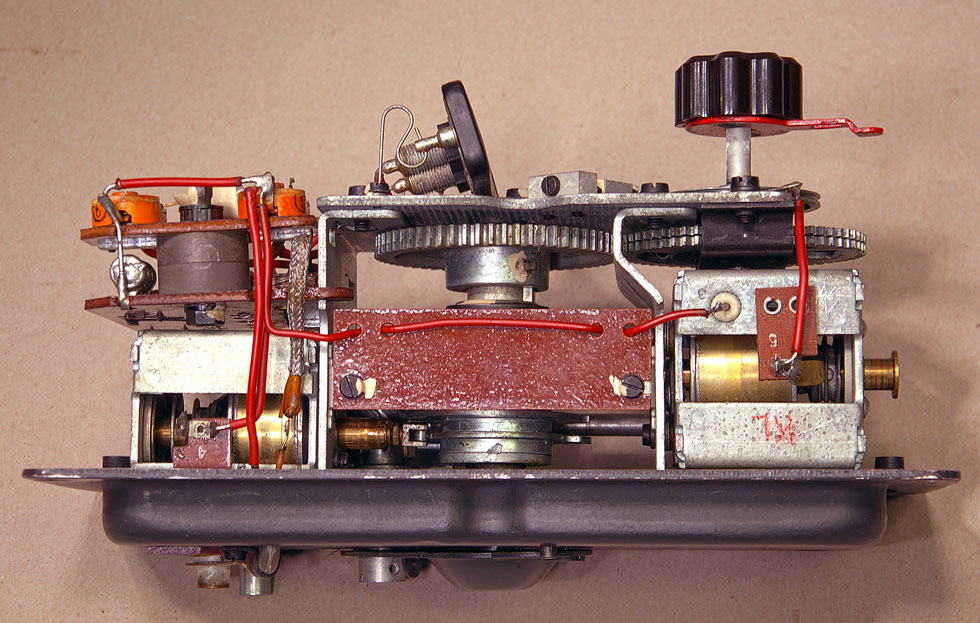

Here we see the two variable capacitors.
