URSL HF PREDICTION
GRAFEX HF PREDICTION
Australian Gowernment Bureau of Meteorology




URSL HF Prediction is a program to calculate the best usable HF frequency band for communication between two fixed positions. Read the Help documentation.

Step 1: Select URSL in the selection box.

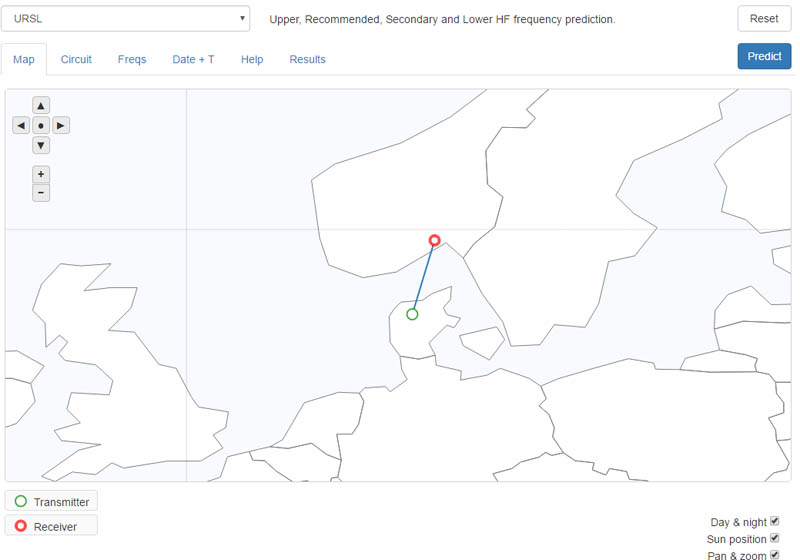

Step 2: Click on the transmitting station and then click on the Receiving Station.
Fur in Denmart to Larvik in Norway.





Step 3: Select "Amateur". Add 5.3 MHz if you wish to use 60 meters.



Step 4: GKlick on "Date+T" . Select "Today" og "Northern Hemisphere".

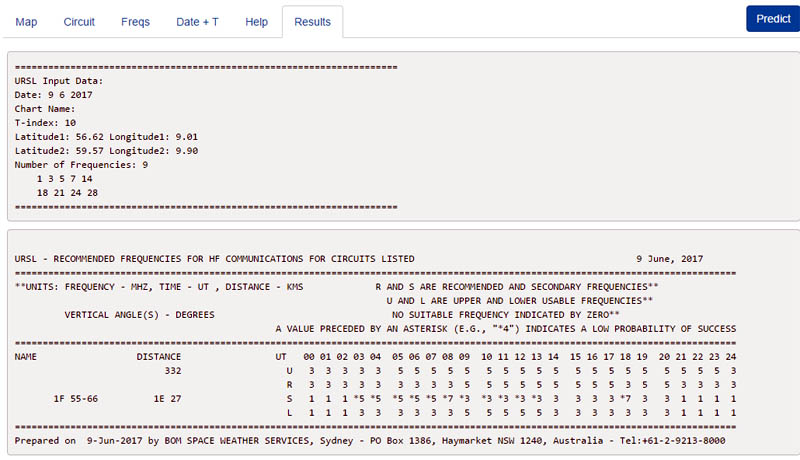

Step 5: Klick on "Predict". The results show the best frequency band in every GMT time


URSL LINK


GRAFEX HF Prediction is a program to calculate the lowest, best and upper frequency between two fixed positions. Read the Help documentation.


Step 1: Select GRAFEX in the selection box.

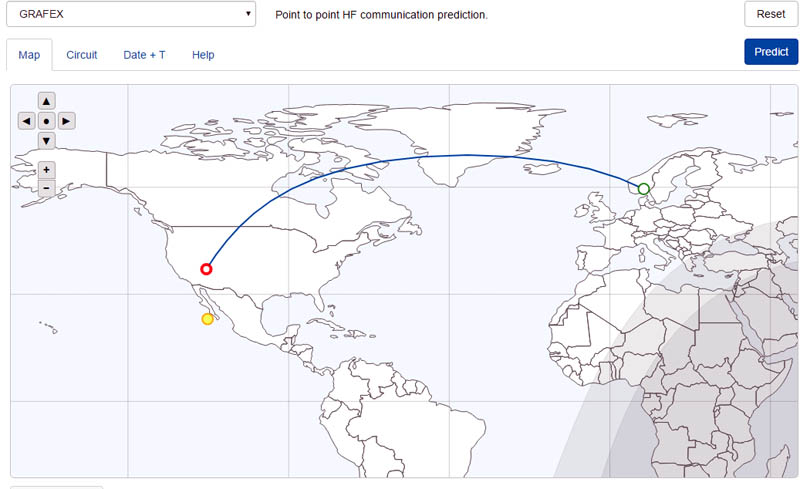

Step 2: Click on the transmitting station and then click on the Receiving Station.
Larvik in Norway to Las Vegas.


Step 3: GKlick on "Date+T" . Select "Today" og "Northern Hemisphere".

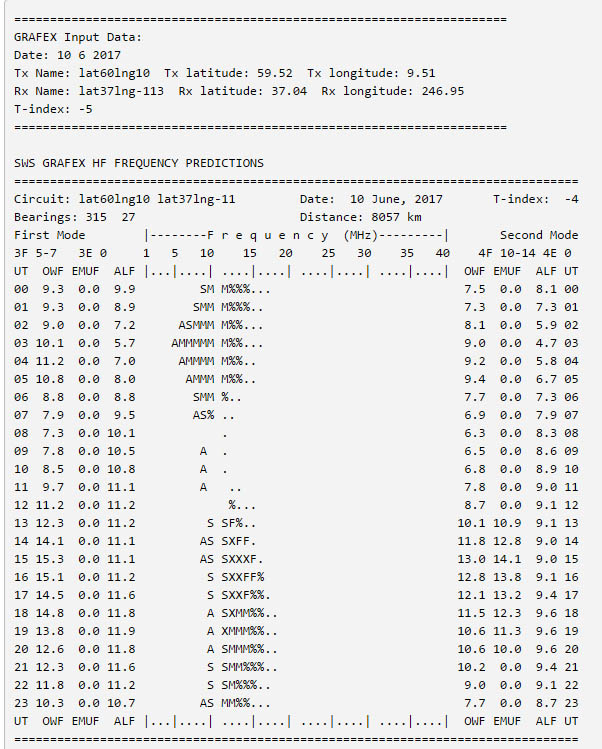

Step 4: Klick on "Predict". The results show the best frequency in every GMT time

GRAFEX LINK
